Equipment Catalog

Complete Oilfield Service Equipment

From coiled tubing units to wellhead tools — every product engineered to API standards and proven in the world's most demanding basins.

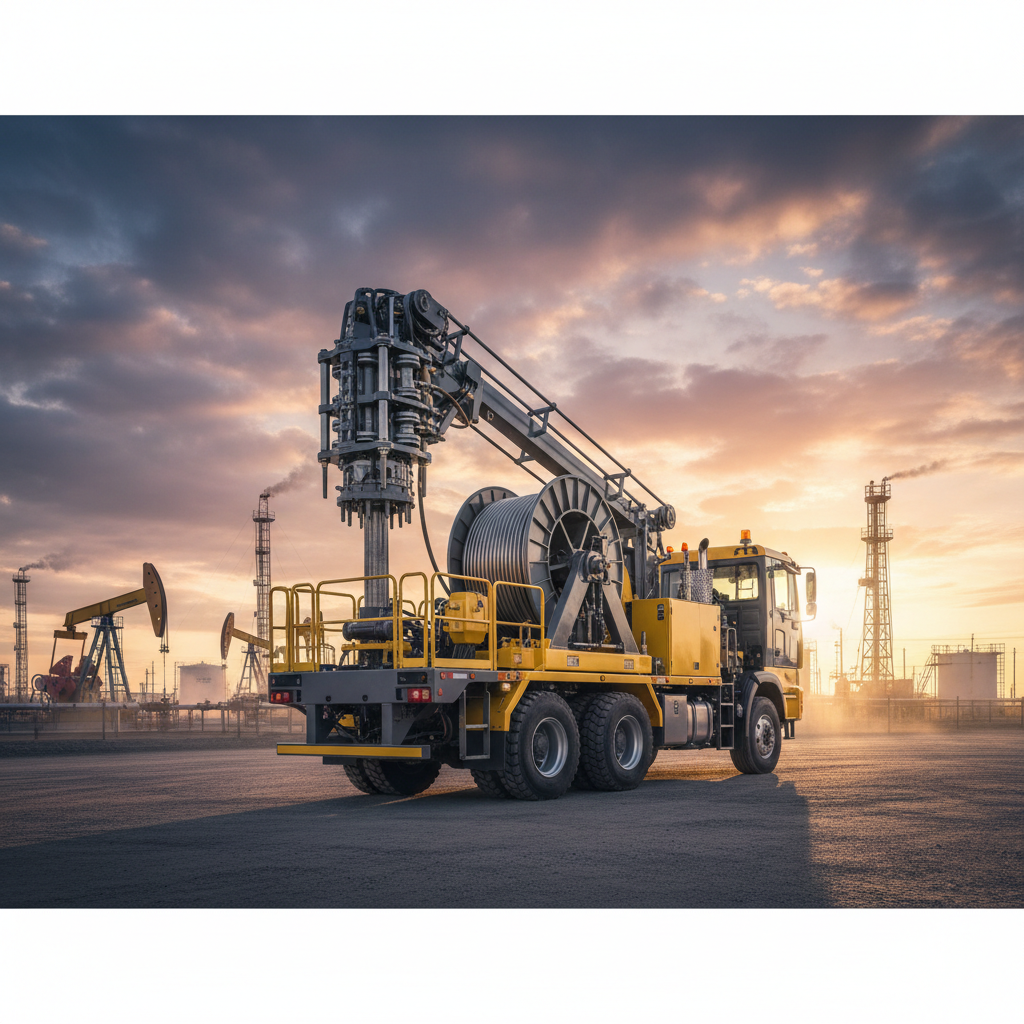

Truck-Mounted Coiled Tubing Unit
Best SellerCTU-3000

Truck-Mounted Coiled Tubing Unit

High-performance truck-mounted CTU for well intervention, cleanout, and stimulation. Suitable for onshore operations worldwide.

Max Working Pressure
15,000 PSI
Reel Capacity
Up to 6,000 m
Tubing OD Range
1" – 3.5"
Injector Force
Up to 80,000 lbs

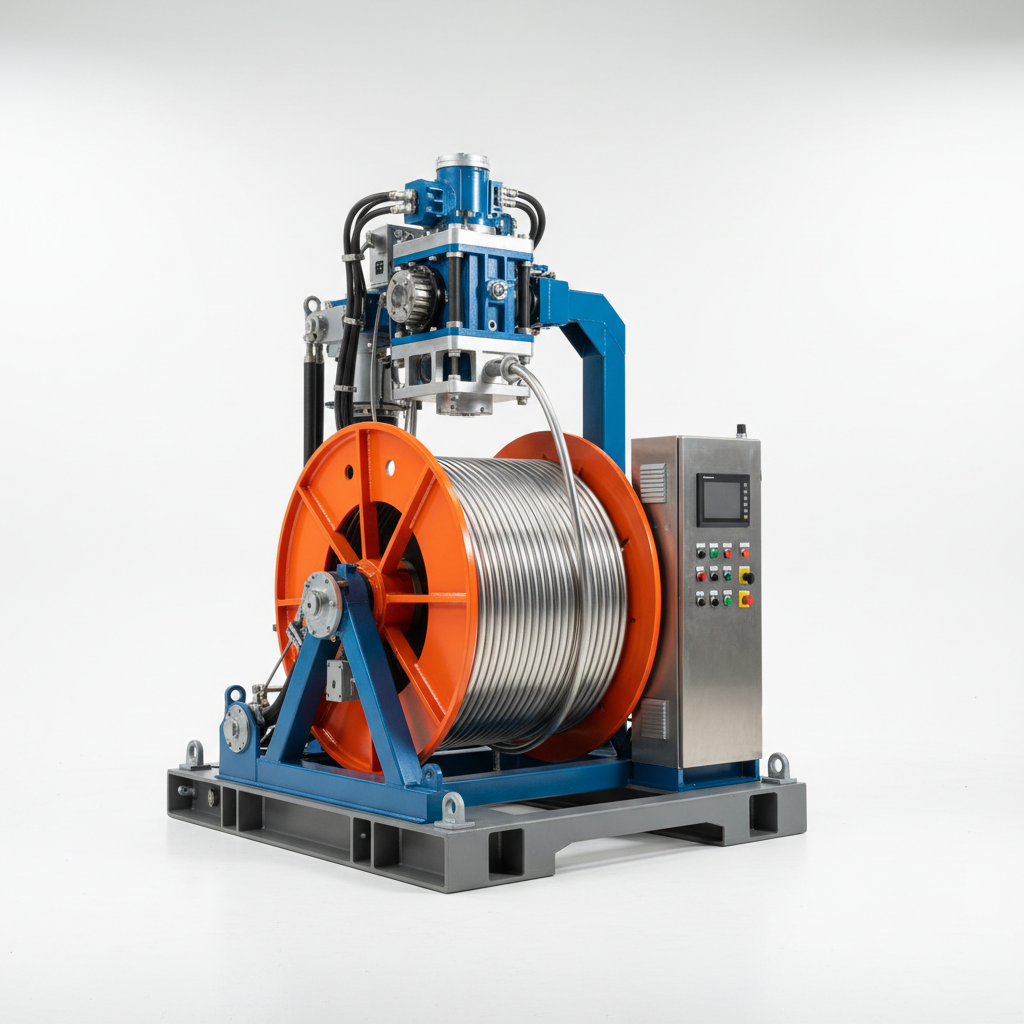

Skid-Mounted Coiled Tubing Unit
Offshore ReadyCTU-S2000

Skid-Mounted Coiled Tubing Unit

Compact skid-mounted CTU designed for offshore platforms and space-constrained onshore locations.

Max Working Pressure
10,000 PSI
Reel Capacity
Up to 4,000 m
Tubing OD Range
1" – 2.875"
Injector Force
Up to 60,000 lbs

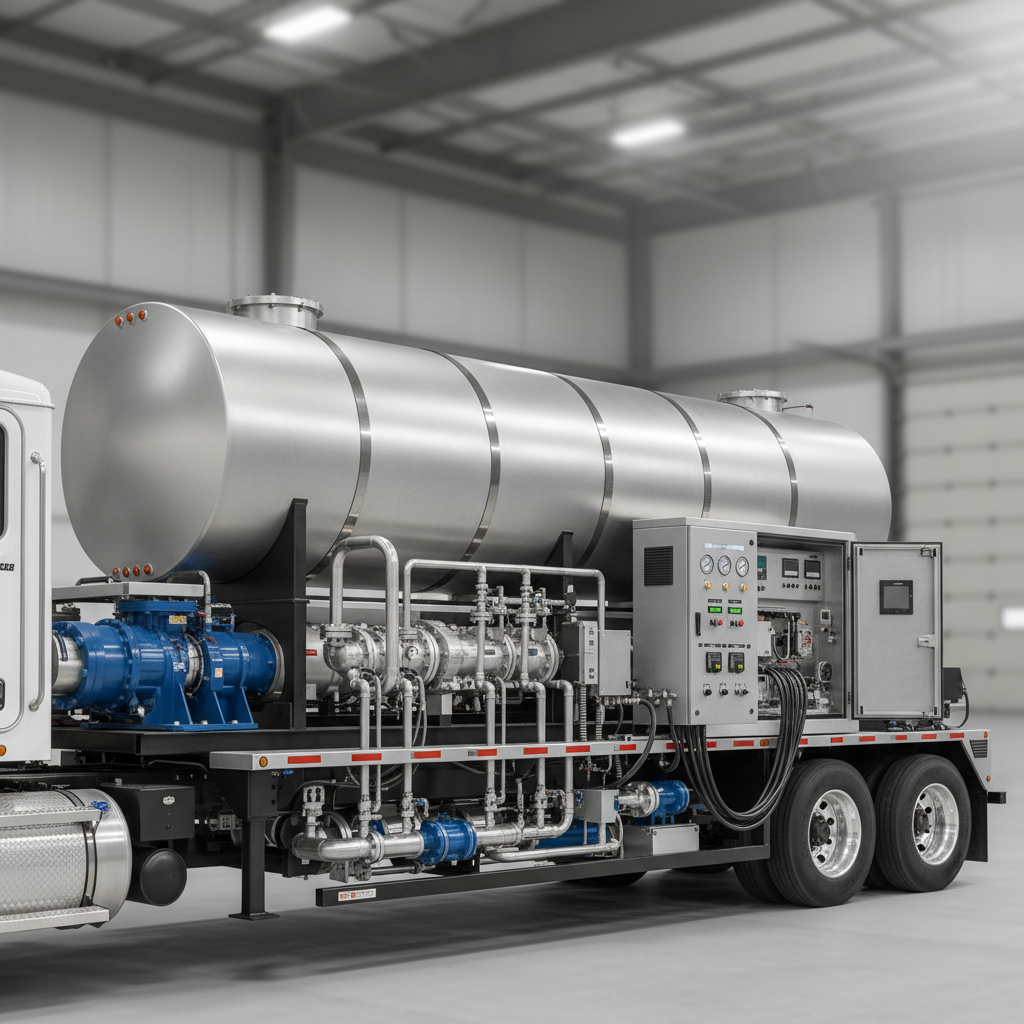

Nitrogen Pumping Unit
High DemandNPU-600

Nitrogen Pumping Unit

High-flow nitrogen pumping unit for well stimulation, purging, pressure testing, and foam fracturing operations.

Max Flow Rate
60 m³/min (GN₂)
Max Working Pressure
15,000 PSI
Liquid N₂ Tank Capacity
10,000 L
Vaporizer Capacity
1,200 m³/h

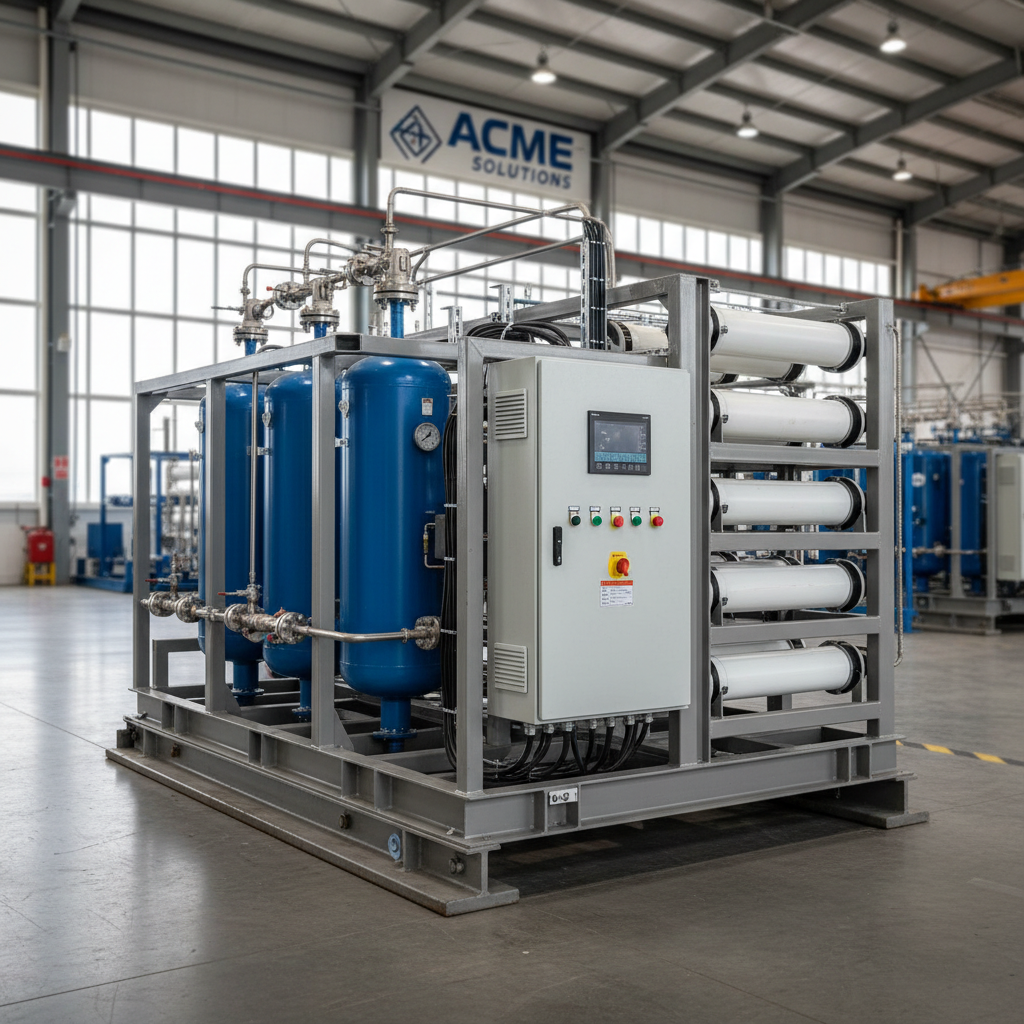

Nitrogen Generator Unit
Cost EfficientNGU-200

Nitrogen Generator Unit

On-site nitrogen generation unit using membrane or PSA technology — eliminates liquid N₂ logistics.

N₂ Purity
95% – 99.9%
Output Flow Rate
Up to 200 Nm³/h
Working Pressure
Up to 3,000 PSI
Technology
Membrane / PSA

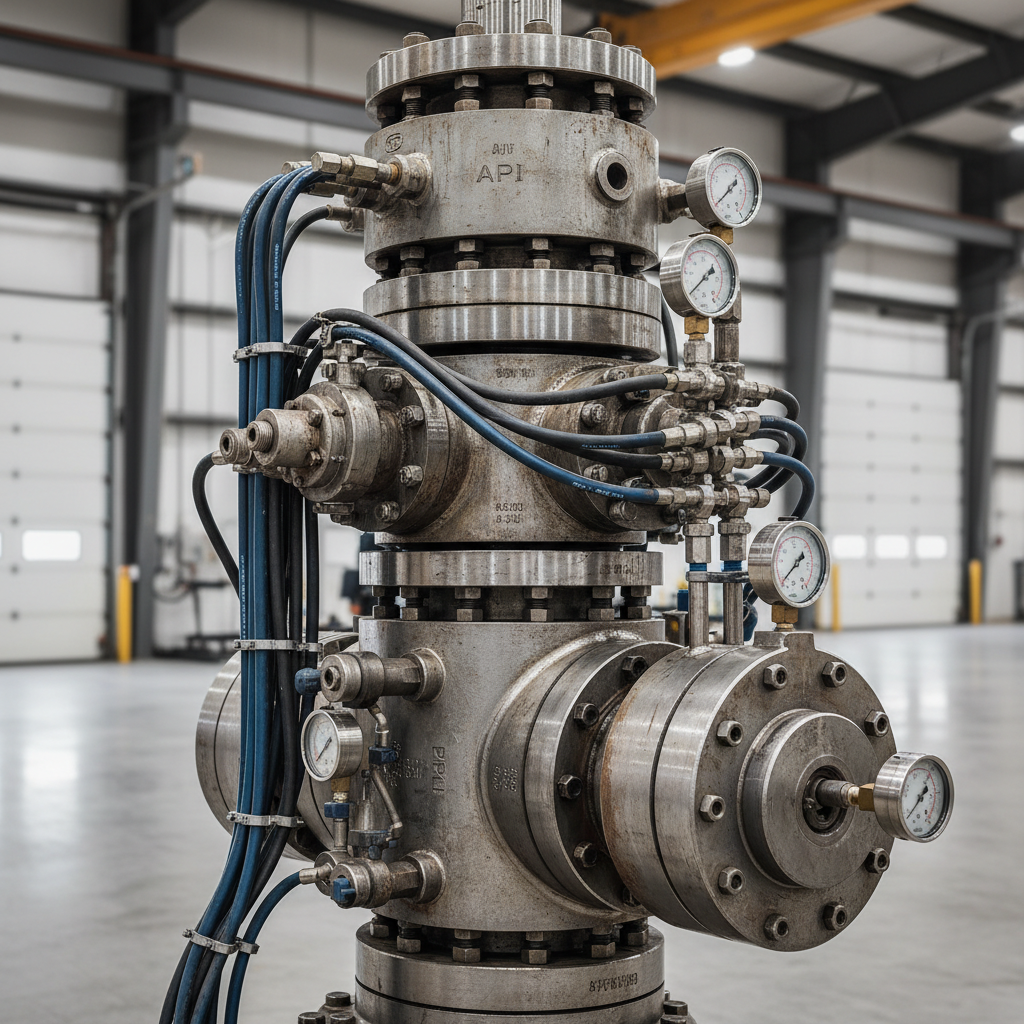

Coiled Tubing BOP Stack
API 16ABOP-15K

Coiled Tubing BOP Stack

Full BOP stack assembly for coiled tubing operations. Provides well control during all phases of CT intervention.

Working Pressure
15,000 PSI
Bore Size
2-1/16" – 4-1/16"
Temperature Rating
-20°F to 250°F
Material Class
DD / EE / FF

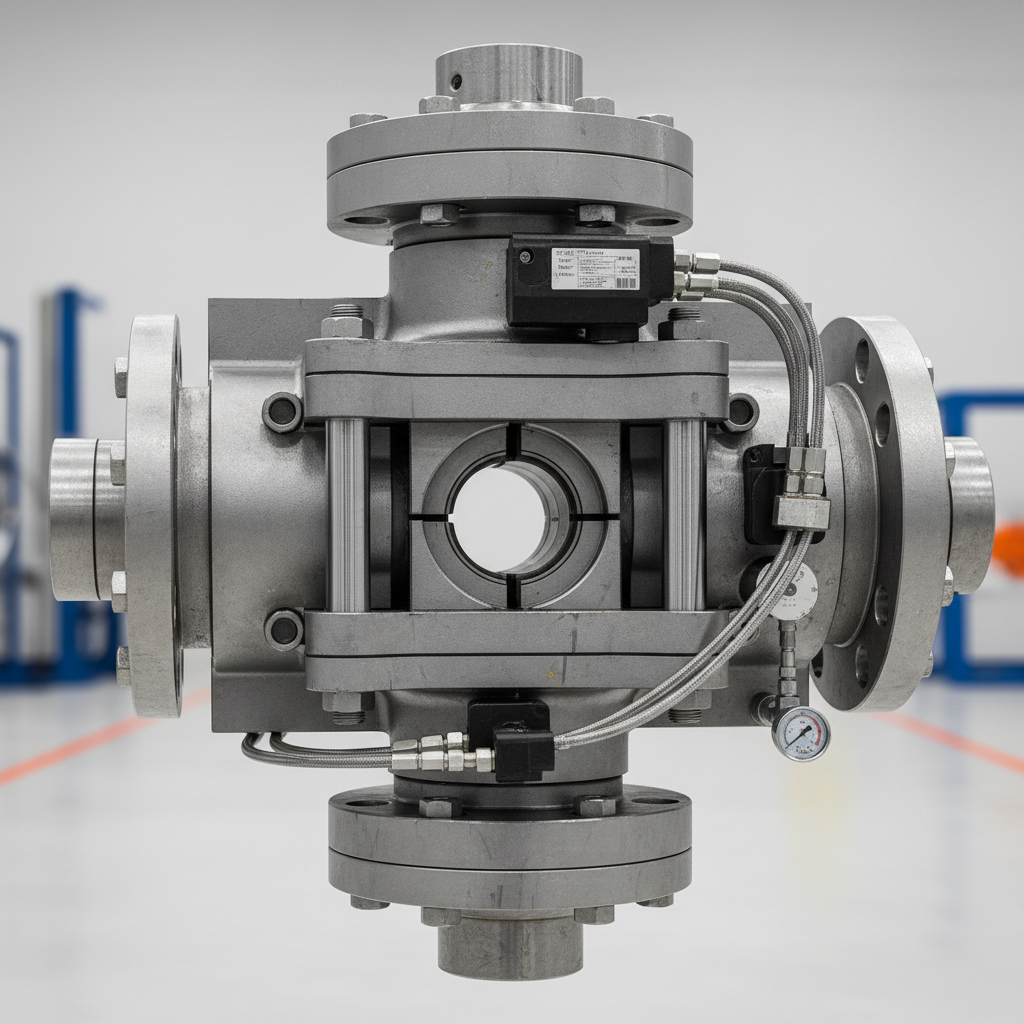

Stuffing Box & Control Head
CT EssentialSB-10K

Stuffing Box & Control Head

High-pressure stuffing box and control head assembly for coiled tubing wellhead interface and well control.

Working Pressure
10,000 PSI
Tubing OD Range
1" – 2.875"
Temperature Rating
-20°F to 250°F
Seal Type
Hydraulic / Mechanical

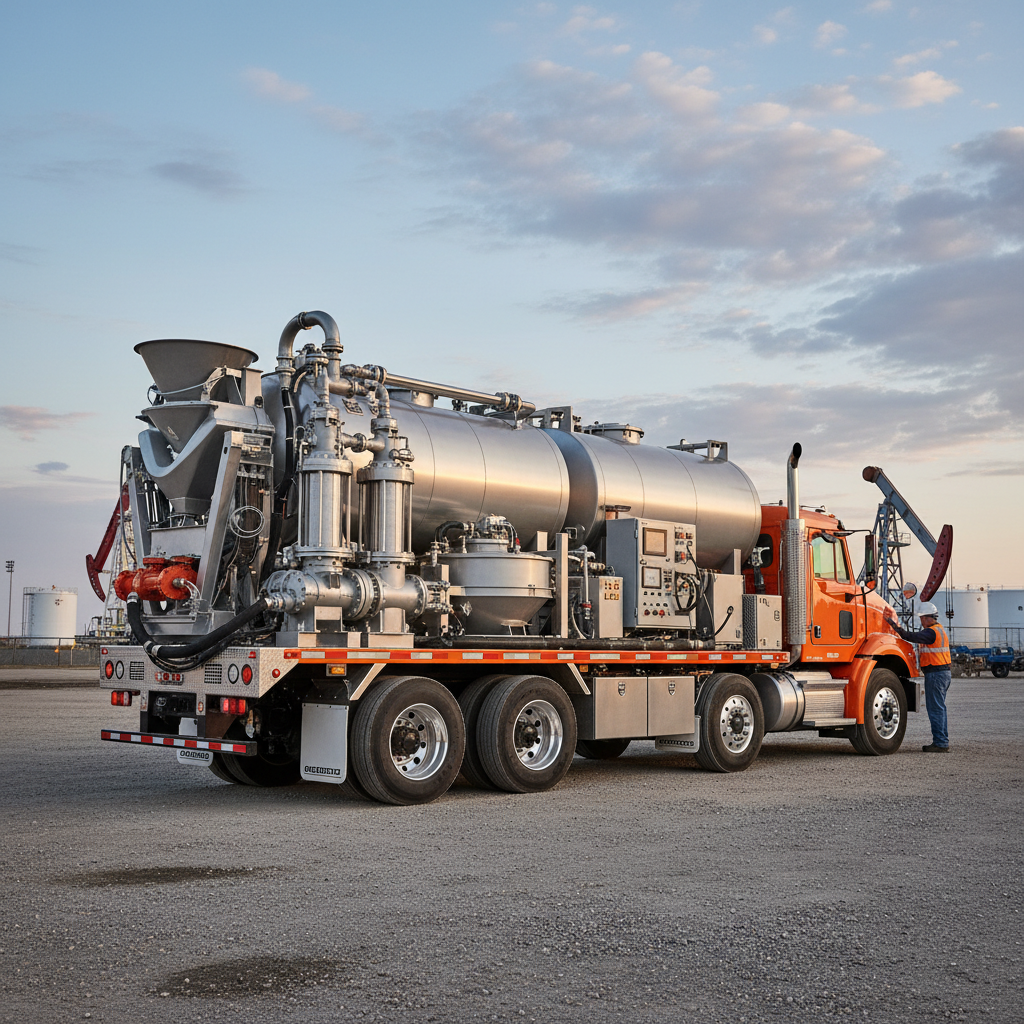

Truck-Mounted Cementing Unit
Full ServiceCMU-15K

Truck-Mounted Cementing Unit

High-pressure cementing unit for primary and remedial cementing operations. Precision metering for consistent slurry quality.

Max Working Pressure
15,000 PSI
Max Displacement Rate
20 bbl/min
Mixing Capacity
Up to 12 bbl/min
Bulk Cement Capacity
30 tons

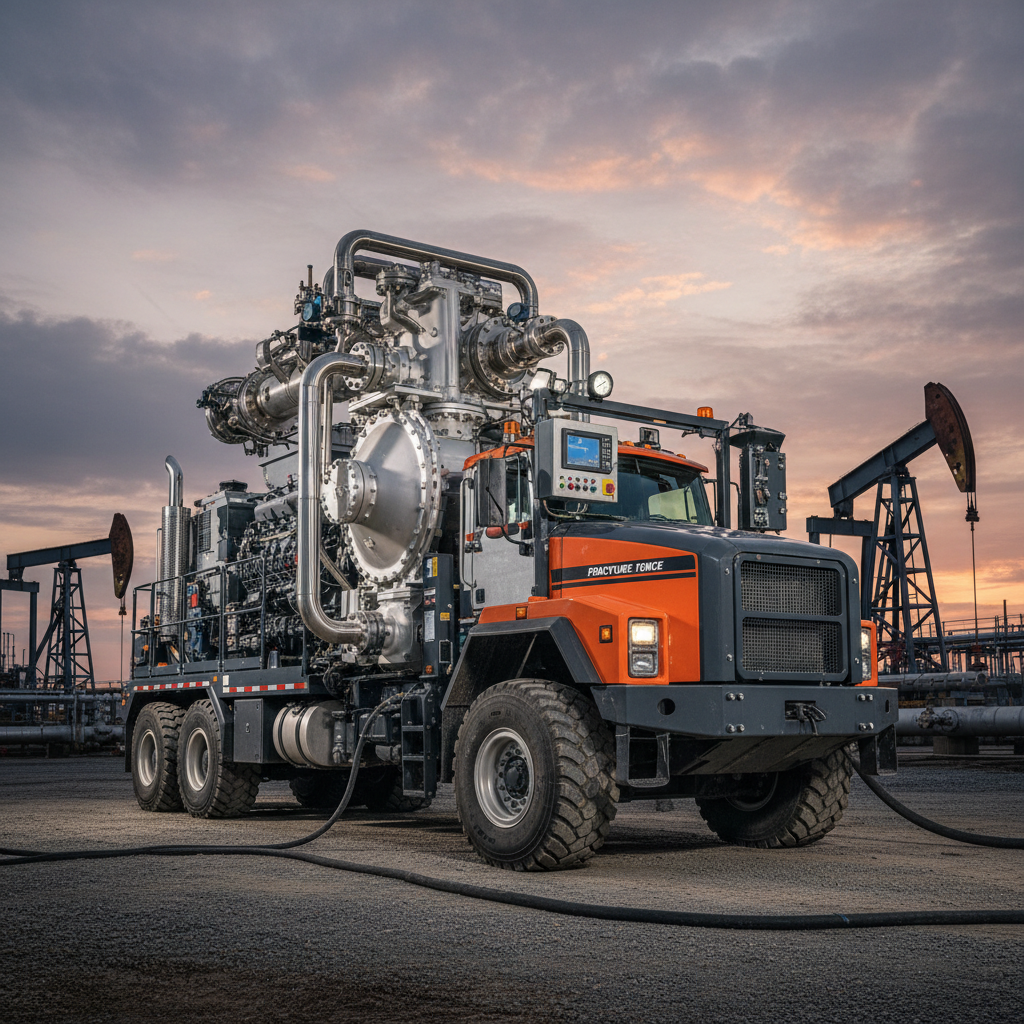

Fracturing Pump Unit
High PressureFPU-2000

Fracturing Pump Unit

High-horsepower fracturing pump unit for hydraulic fracturing and stimulation operations in unconventional reservoirs.

Max Working Pressure
15,000 PSI
Hydraulic Horsepower
2,000 HHP
Max Flow Rate
30 bbl/min
Plunger Size
4" – 5"
API Q1 Certified
ISO 9001:2015
CE Marked
API 6A
API 16A
ATEX Rated

Need Custom Specifications?

Our engineering team can customize any equipment to your operational requirements. Contact us for a technical consultation.
